Ce Approved 30W 980nm Diode Laser For Clinics
Description
Technical Parameters
CE-certified 30W 980nm fiber-coupled diode laser is built for professional clinic use. Leveraging selective photothermolysis, the 980nm wavelength is optimally absorbed by oxyhemoglobin inside superficial capillaries. Powered by upgraded 30W stable diode source, it delivers precise energy through ultra-fine optical fiber to coagulate target vessels, while limiting thermal spread to adjacent healthy skin. It brings immediate visible fading of red lesions, predictable clinical results and low downtime, a high-value core device for dermatology clinics, medical aesthetic centers and vascular specialist studios.
Working Principle of 980nm Diode Laser for Vascular Therapy
980nm falls within the ideal absorption band for hemoglobin and porphyrin in blood vessels. The integrated 650nm aiming beam marks the target clearly for operators. Laser energy travels along the thin optical fiber and is delivered directly into the abnormal capillary. Hemoglobin absorbs the light and converts it into controlled thermal energy, shrinking and sealing the vascular wall. Closed vessels are gradually broken down and eliminated naturally via the body's lymphatic system.
Compared with 15W low-power 980nm lasers:
✅ Higher 30W peak power handles thicker, stubborn superficial capillaries efficiently
✅ Shorter pulse options reduce prolonged heating on skin ✅ Consistent energy output even during long continuous clinic working hours
✅ Less repeated passes required for the same vascular lesion
🔹 CE Approved for Professional Clinical Use Compliant with European safety standards for aesthetic laser equipment. Each machine passes strict aging test, energy calibration and laser safety inspection before shipment. Complete certification documents available for your clinic registration and audit.
🔹 30W High-Stability Diode Laser Source Industrial-grade fiber-coupled diode module, steady energy output, long service life, supports back-to-back clinic appointments all day without obvious power decay.

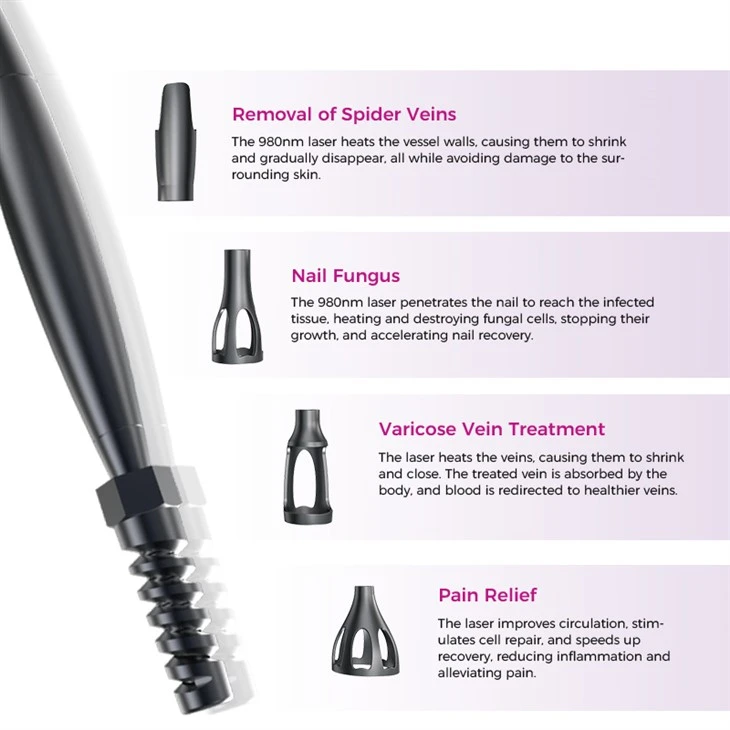

🔹 Fine Fiber Handpiece with Pinpoint Precision 0.2–0.4mm thin optical fiber tip, single-vessel targeting. Treat tiny scattered red veins one by one, avoid broad-area overheating. SMA905 standard fiber connector, easy fiber replacement and maintenance.
Technical Specifications (30W Standard Clinic Version)
Laser Source: Fiber-coupled 980nm Diode Laser
Wavelength: 980nm ±10nm
Max Output Power: 30W, continuously adjustable
Aiming Beam: 650nm red indicator beam (<5mW)
Fiber Tip: 0.2mm / 0.3mm / 0.4mm optional fiber handpiece
Working Mode: Continuous wave CW / Single pulse / Repeat pulse
Pulse Width: 5ms – 400ms adjustable
Frequency: 1–20Hz adjustable

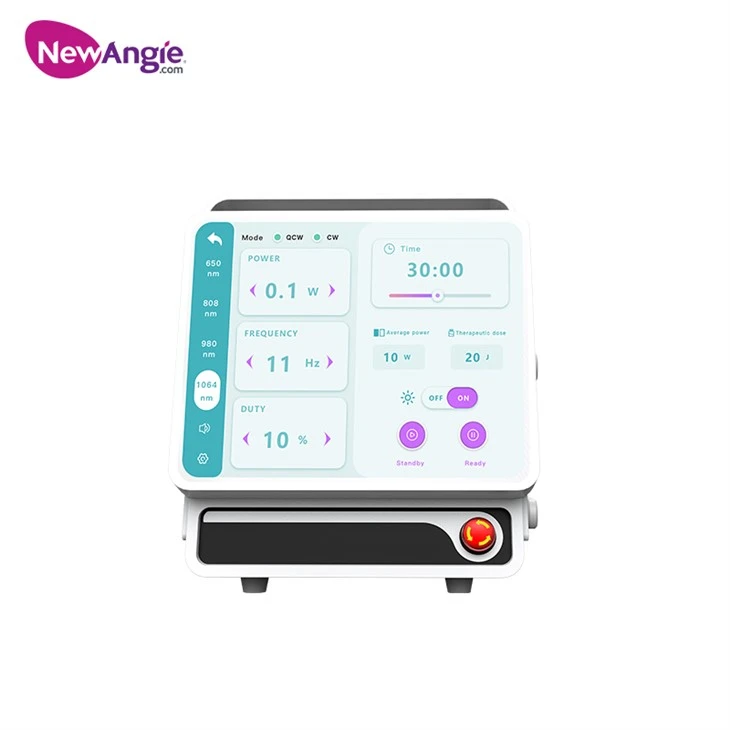

Screen: 8-inch /10.4-inch colour touch screen
Cooling: High-efficiency air cooling
Power Supply: 110V / 220V, 50/60Hz universal
Clinical Treatment Indications
Facial telangiectasia, cheek and nasal red capillaries
Spider veins on face, neck, chest and lower extremities
Cherry angiomas and small superficial vascular nevi
Post-procedure red vascular blemishes
Optional add-on: Onychomycosis / nail fungus therapy (multi-function version)
Clinical Treatment Protocol & Aftercare
Pre-treatment: Clean skin thoroughly. Avoid sun exposure for 2 weeks prior. Always perform a spot test on a hidden area to assess skin reaction.
Contraindications: Active herpes lesions, inflamed skin, fresh sunburn, keloid tendency, pregnancy.
Post-care rules: Do not rub, scratch or peel the treated area. Avoid hot showers, saunas and heavy sweating for 3–5 days.
Strict sun protection is mandatory between sessions.
Treatment interval: 3–6 weeks. Fine simple capillaries may clear in 1–3 sessions; thicker or widespread vascular lesions require multiple sessions.
