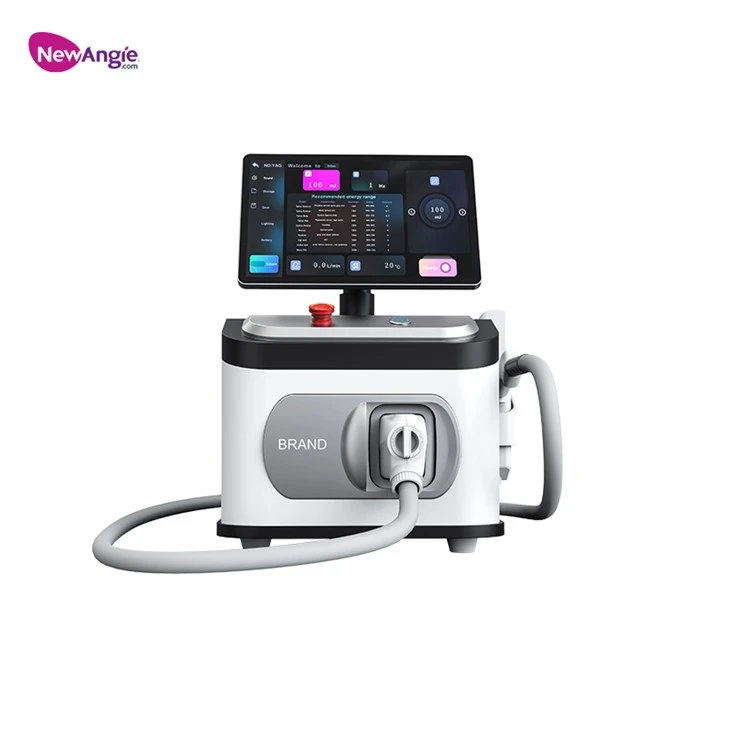

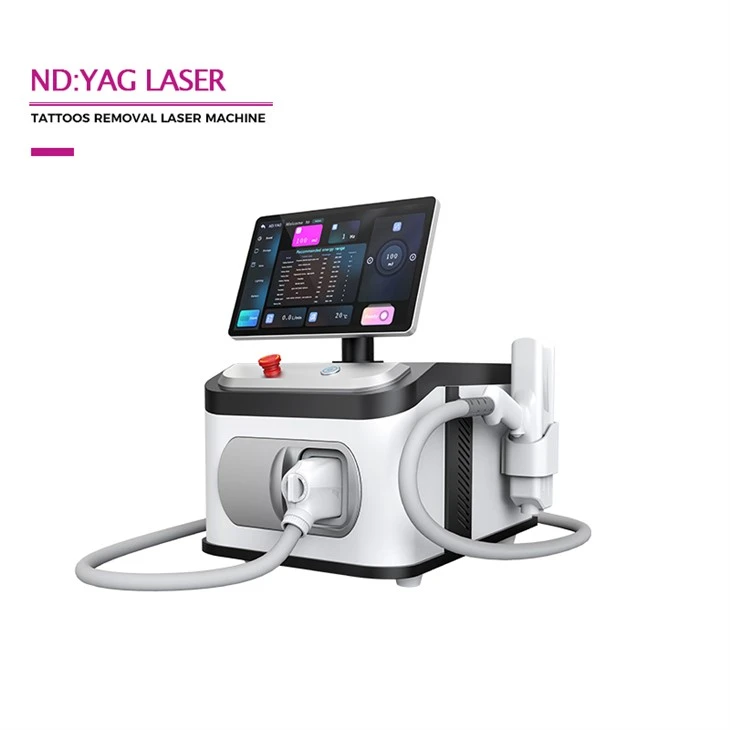

Q Switched ND YAG Laser Tattoo Removal For Skin Clinic
Technology: nd yag Laser
Function: Tattoo Removal, Skin Rejuvenation
Treatment area: Body Legs Arms
Certification: CE， FDA， ISO13485
Warranty: 1 year
Customized Service: OEM, ODM, logo
Description
Technical Parameters
Q Switched ND YAG Laser Machine is a commercial medical aesthetic device exclusively designed for professional skin clinics, dermatology centers and high-end medspas. Equipped with advanced electro-optic Q-switched nanosecond technology and dual core wavelengths 1064nm & 532nm, this machine provides high-precision, non-invasive treatment for full-color tattoo removal and various dermal & epidermal pigment lesions.
Different from ordinary beauty lasers, it adopts photoacoustic fragmentation technology to shatter pigment particles instantly without thermal diffusion to surrounding skin. It also supports classic carbon peel skin rejuvenation treatment, realizing one machine for multiple high-profit clinic projects. With ultra-stable energy output, intelligent parameter system and full safety protection, it is the most cost-effective mainstream laser device for clinic daily skin treatment business.
Based on selective photothermolysis and Q-switched nanosecond pulse technology, the laser releases ultra-short pulses within 6–10 nanoseconds with extremely high peak power. The instantaneous photoacoustic energy acts on pigment particles and tattoo ink, crushing large pigment blocks into micro-fine powder that can be naturally metabolized and excreted by the human lymphatic and immune system.
Dual Wavelength Targeted Treatment
1064nm Long Wavelength: Strong skin penetration, specially targets deep dermal dark pigments - black/blue/grey tattoo, nevus of Ota, nevus of Ito, deep traumatic pigmentation. No damage to epidermis, no scarring.
532nm Short Wavelength: High absorption for superficial light pigments - red/brown/pink/orange tattoo ink, freckles, sun spots, age spots and superficial chloasma.
Wide Treatment Applications
4.1 Tattoo Removal
Full-color body tattoo removal & fading
Eyebrow, eyeliner, lip tattoo cleaning
Old tattoo residue removal & tattoo modification
4.2 Pigment Lesion Removal
Epidermal pigments: freckles, sun spots, age spots, cafe-au-lait spots
Dermal pigments: nevus of Ota, nevus of Ito, melanotic nevus
Traumatic pigmentation, post-inflammation pigment residue
4.3 Carbon Peel Skin Rejuvenation
Deep pore cleaning, remove blackheads and acne grease
Shrink enlarged pores, improve rough skin texture
Brighten dull skin, whiten and even skin tone
Improve mild acne and shallow acne marks
Specification
| Laser Type | Single light double rod |
| Laser Wavelength | 1064nm,532nm,1320nm |
| Working Frequency | 1-10Hz (Adjustable) |
| Pulse Width | 8ns |
| Operation Interface | 15.6 screen |
| Machine Power | 500W |
| Energy Density | 50-1000m/cm² |
| Multi-pulse Energy | 3.2J (500W dual capacitor) |
| Spot Size | 6mm |
| Power Supply | AC 110-220V 5A 50Hz |
🔥 Water-Air Dual Cooling, 24H Continuous Work Closed circulating water + air dual cooling system ensures stable heat dissipation. Supports high-frequency continuous commercial use all day long, no energy attenuation, long service life.
🔥 Intelligent Preset Program, Zero Threshold Operation Built-in professional treatment protocols for different tattoos, pigments and skin types. New operators can master operation quickly, reducing clinic training cost.
🔥 Full Safety Protection Design Equipped with key lock, emergency stop, red aiming beam, overheating protection and anti-leak laser system to ensure 100% safe clinical operation.
